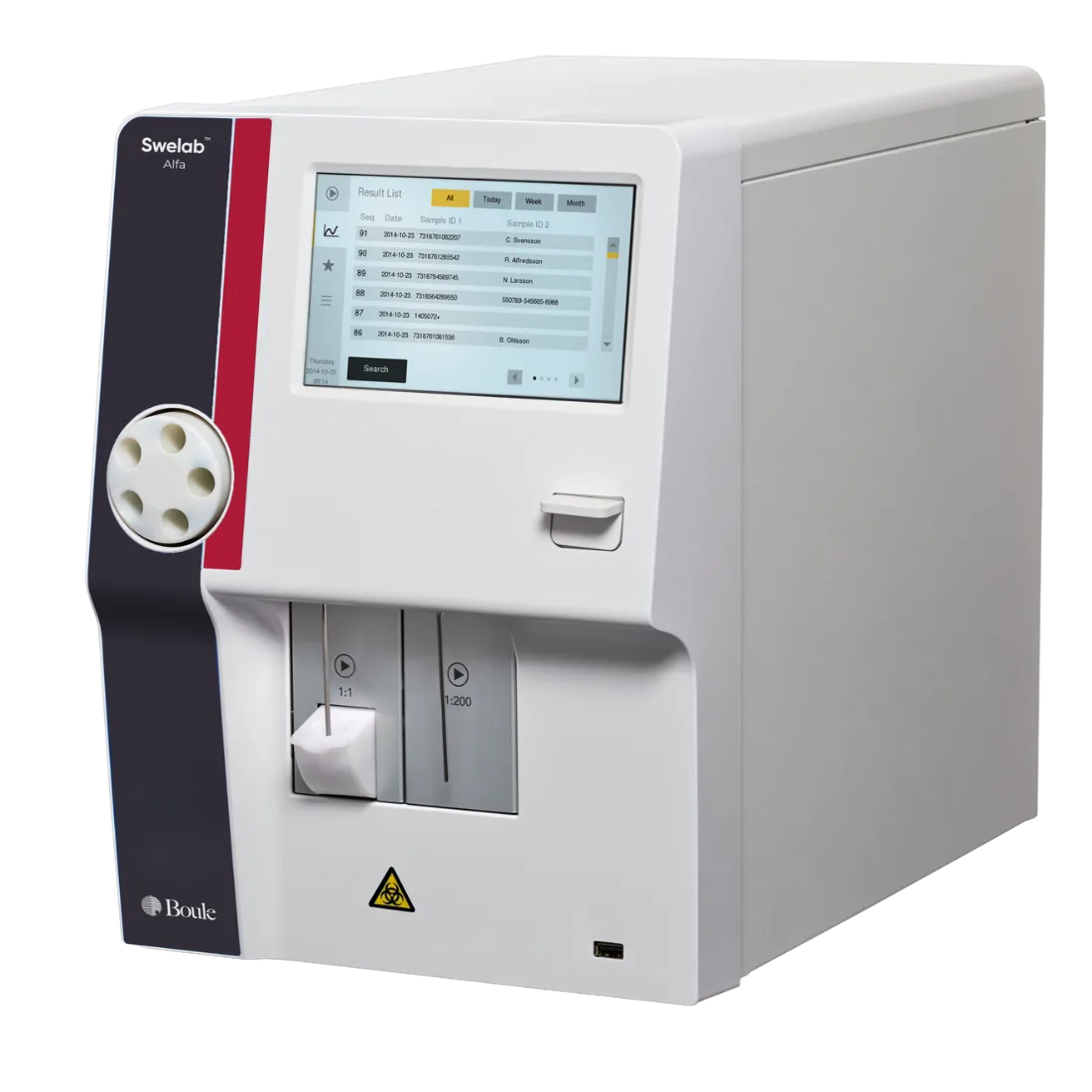

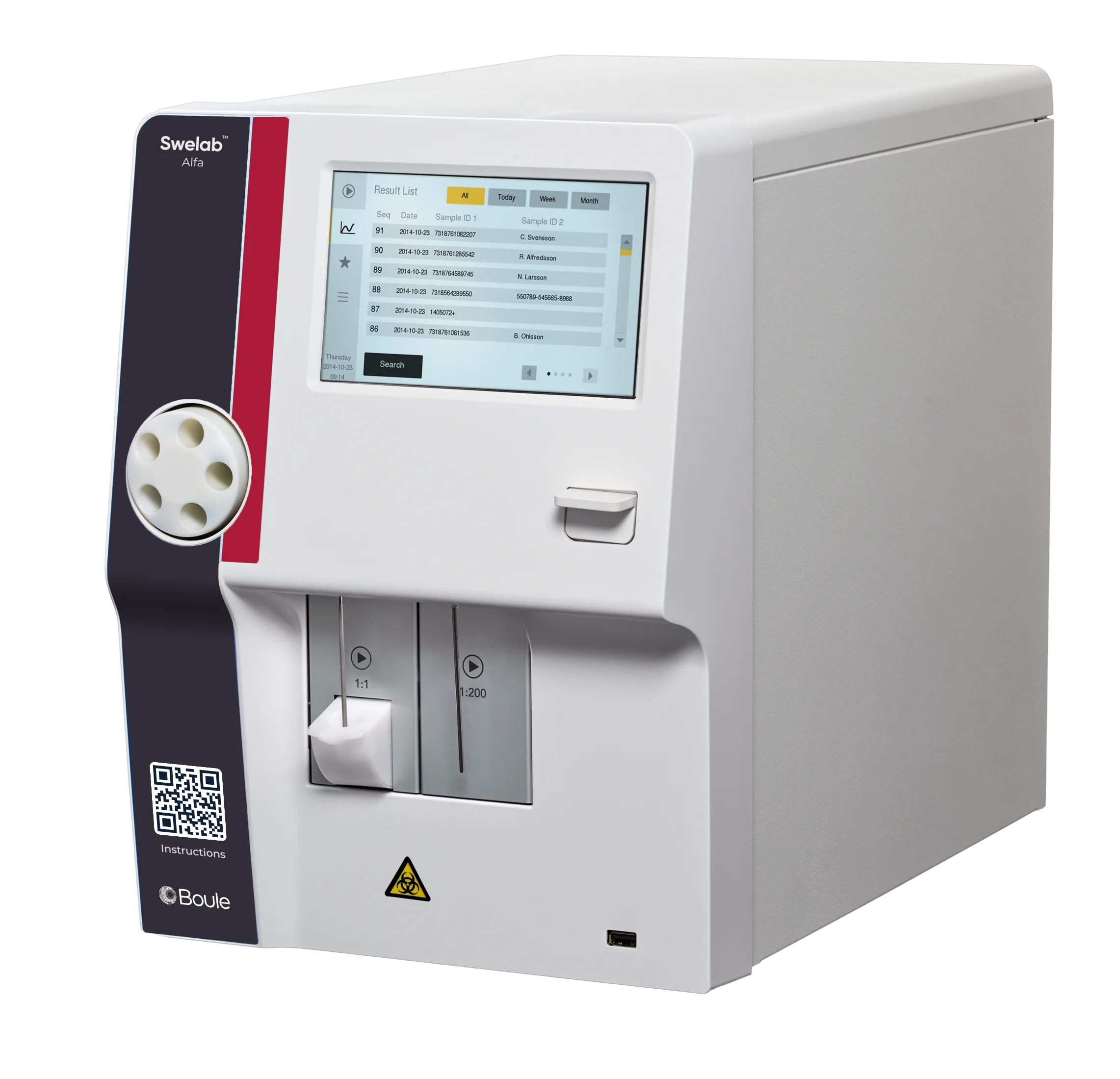

Swelab Alfa Plus Standard

Swelab Alfa Plus Standard hematology system provides a complete blood count also from a fingerstick blood sample, when venous blood is not available.

  • Capillary blood analysis

    A complete blood count, including a 3-part WBC differential count, from a fingerstick sample

  • Rapid results

    To support early diagnosis and initiation of treatment

  • Robust design

    Helps ensure instrument uptime
Request a quote
Specifications
Consumables
Documentation
Training

Specifications

Disclaimer: Swelab Alfa Plus is not for sale in the USA

Parameters 3-part

16 Clinical Parameters:
WBC, RBC, HGB, MCV, PLT, MPV, HCT, MCH, MCHC, RDWr, LYM#, LYM%, MID#, MID%, GRA#, GRA%

6 Research Parameters:
PCT, PDWa, P-LCR, RDWa, PDWr, P-LCC

Performance 3-part

Throughput:
Up to 60 samples/hour
50 seconds time to results, OT inlet

Sample Volume:
Open tube (OT): 110 µL
Capillary (MPA): 20 µL
Prediluted: 20 µL
Cap piercer (CT): 250 µL
Autoloader: 300 µL

Sample Aspiration:
Open tube
Closed tube
Micro-pipette adapter
Autosampler (20 × 20 samples)

Linearity
PLT: 10–1800 ×109/L
RBC: 0.30–7.00 ×1012/L
WBC: 0.20–130.0 ×109/L
HGB: 2.0–24.0 g/dL

QC Statistics:
≤ Mean
SD
CV%
Levey-Jennings
X-bar

Connectivity 3-part

Data Storage Capacity:
Up to 50,000 samples

Interface Ports:
1 USB device/4 USB host, 1 LAN.
port that supports LIS/HIS
Communication through HL7 protocol

Export Options:
Postscript-compatible printers supporting PCL 3/5e
Software-supported thermal printers
External USB disk
Laboratory information system (LIS)

Physical 3-part

Display:
7” TFT touchscreen

Weight:
18 kg (Basic/M32B, Standard/M32M, Cap/M32C)
22 kg (Sampler/M32S)

Dimensions:
295 × 475 × 395 mm (Basic/M32B, Standard/M32M, Cap/M32C)
340 × 475 × 395 mm (Sampler/M32S)

Controls:
Tri-level controls (L, M, H)

Ensuring Reliability and Accuracy in Hematology

Boule has, through the company’s presence throughout the value chain for products that enable reliability,  accurate analysis results, an exceptional hematology offering. From development and production to installation and use at the end customers, Boule ensures the quality in line with the company’s quality concept.

Internal quality assurance processes are in place the entire way from contracts with subcontractors, throughout production to the completion of the end products. By offering product service and product use training courses, Boule’s knowledge and quality concept cover the entire product life.

The concept is called The Total Quality Concept and the ultimate goal is to offer high-quality instruments and consumables that provide patients a close and accessible, more efficient and safer care.

Swelab Alfa Plus consumables

* Location of manufacturing. For availability in your country, please contact your local Boule representative.

Article name
Article description
Article number
Swelab AlfaDiluent, RFID
20 L
1504462 (EU*), 501-465 (US*)
Swelab AlfaLyse, RFID
5 L
1504463 (EU*), 501-466 (US*)
Swelab Alfa ComboPack, RFID
5 L + 1 L
1504464
Swelab AlfaDiluent
20 L
1504124 (EU*), 501-208 (US*)
Swelab AlfaLyse
5 L
1504125 (EU*), 501-207 (US*)
Swelab Alfa ComboPack
5 L + 1 L
1504127
Boule Cleaning Kit
3 × 450 mL
1504111 (EU*), 501-036 (US*)
Boule Enzymatic Cleaner
100 mL
1504112
Boule Hypochlorite 2.0% Cleaner
500 mL
1504113
Boule MPA Micro Pipettes Plastic
10 × 100
1070030
Boule MPA Micro Pipettes Plastic
1 × 100
1070039

Boule Controls & Calibrators

Article name
Article description
Article no.
Boule Con-Diff Normal
1 × 4.5 mL
1504019
Boule Con-Diff Low
1 × 4.,5 mL
1504020
Boule Con-Diff High
1 × 4.5 mL
1504021
Boule Con-Diff Tri-Level
2 × 3 × 4.5 mL
1504022 (EU*), 502-012 (US*)
Boule Con-Diff Normal
6 × 4.5 mL
1504043
Boule Con-Diff Low
6 × 4.5 mL
1504176
Boule Con-Diff High
6 × 4.5 mL
1504216
Boule Cal
1 × 3 mL
1504025 (EU*), 502-018 (US*)
Boule Cal
2 × 3 mL
1504045

Swelab Alfa Plus product family range

Model
Basic
Standard
Cap
Sampler
Article no.
1420041
1420042
1420044
1420046
Built in mixer
Micro-pipette adapter inlet
Maintenance-free shear valve
Pre-dilution mode
Cap-piercing device
Autoloader
Request more information
Testimonials

Trusted by experts worldwide

"Capillary sampling is less fearful for children, feeling more comfortable when holding them by the finger rather than grabbing their arm. Therefore, the MPA functionality is the most important feature of Swelab Alfa Plus."

Dr. Irlanda Mohd Idzham

Klinik Idzham Sdn Bhd Kuala Lumpur Malaysia
"I like the Swelab Alfa Plus because it is easy and simple to use. Using the barcode reader, we enter control values very quickly and we avoid the risks entering them manually. The system makes us feel very confident and we strongly recommend it!"

Dulce Ivette Jimenez

Pharmacological chemist Chemist Laboratorio Monar, Mexico
“With Swelab Alfa Plus, we have a highly reliable instrument, easy to use and with an autoloader for the automated handling of a high number of samples."

Dr. Fernando Bonilla

Clinical Microbiologist Triage Center Honduras
