Swelab Lumi

With its compact design, Swelab Lumi 5-part hematology system is well suited for the smaller laboratory.

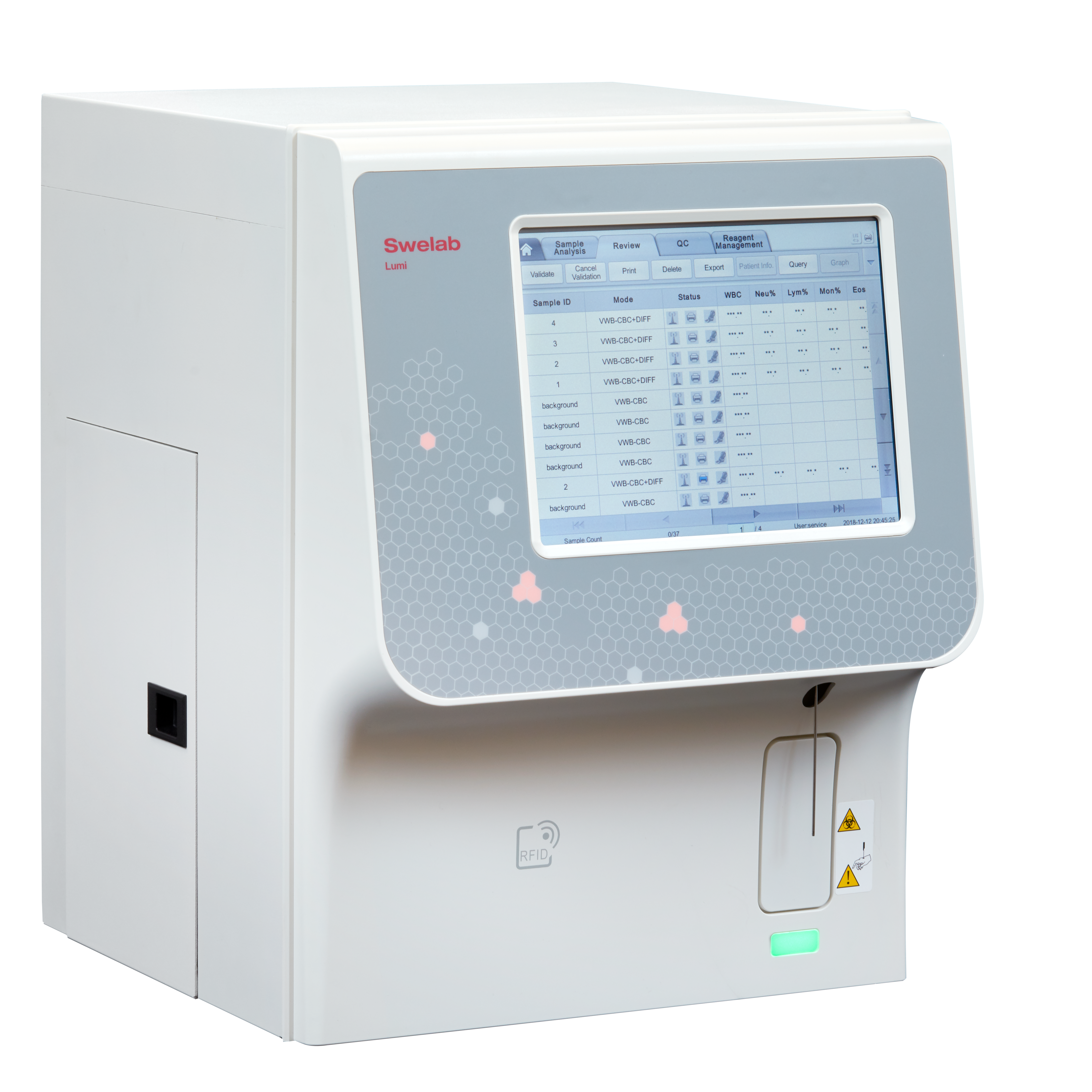

Swelab Lumi hematology analyzer

  • Simple

    Developed to simplify work processes

  • Robust

    Designed to ensure a reliable performance

  • Compact

    Small footprint to suit the smaller laboratory
Request a quote
Specifications
Consumables
Documentation
Training

Specifications

Disclaimer: Swelab Lumi is not for sale in the USA

Performance 5-part

Throughput:
CBC mode: ≥ 64 samples per hour
CBC+DIFF mode: ≥ 48 samples per hour

Sample Volume:
CBC mode: ≤ 20 μL
CBC+ DIFF mode: ≤ 25 μL

Samples:
Whole blood (venous and capillary)
Pre-dilutes whole blood

Sample Aspiration:
Open tube

Linearity Ranges

PLT: 0–3000 ×109/L
RBC: 0–8.5 ×1012/L
WBC: 0–300 ×109/L
HGB: 0–250 g/L

Parameters 5-part

29 clinical parameters:

RBC, MCV, HCT, RDW-CV, HGB, MCH,
MCHC, PLT, MPV, , WBC, LYM#, LYM%,
MON#, MON%, NEU#, NEU%, EOS#,
EOS%, BAS#, BAS%

6 Research parameters reported:

RDW-SD, PCT, PDW, P-LCC, P-LCR, AL#, AL%, IG#, IG%

Physical 5-part

Display:
10.4 inch TFT touch screen

Weight:
26.5 kg

Dimensions:
364 mm (L) x 431 mm
(W) x 498 mm (H)

Connectivity 5-part

Interface Ports:
4 USB ports, 1 LAN
port that supports
bidirectional HL7
protocol

Export Options:
External laser printer or inkjet printer (various printout formats and user-defined formats)
External USB flash disk
Laboratory information system (LIS)

Ensuring Reliability and Accuracy in Hematology

Boule has, through the company’s presence throughout the value chain for products that enable reliability, accurate analysis results, an exceptional hematology offering. From development and production to installation and use at the end customers, Boule ensures the quality in line with the company’s quality concept.

Internal quality assurance processes are in place the entire way from contracts with subcontractors, throughout production to the completion of the end products. By offering product service and product use training courses, Boule’s knowledge and quality concept cover the entire product life.

The concept is called The Total Quality Concept and the ultimate goal is to offer high-quality instruments and consumables that provide patients a close and accessible, more efficient and safer care.

Swelab Lumi consumables

Article name
Article description
Article number
Swelab Lumi-D Diluent
20 L
1504514
Swelab Lumi-L1 Lyse
200 mL
1504515
Swelab Lumi-L2 Lyse
500 mL
1504516
Boule EasyCleaner
50 mL
1504513

Boule Controls & Calibrator Swelab Lumi

Article name
Article description
Article no.
Boule Con-5Diff A1 Tri
3 × 2 × 3 mL
1504518
Boule Con-5Diff A1 Norm
6 × 3 mL
1504519
Boule Con-5Diff A1 Norm
1 × 3 mL
1504520
Boule Con-5Diff A1 Low
1 × 3 mL
1504521
Boule Con-5Diff A1 High
1 × 3 mL
1504522
Boule Cal-5Diff A1
1 × 3 mL
1504517
Request more information
Testimonials

Trusted by experts worldwide

“The Banjarmasin regional laboratory has been using Swelab instruments since 2003, starting with SWELAB AC 910 series and now most recently the Swelab Lumi. The patient data and the Error Warning informed by the system is very helpful, and the possibility to connect to LIS reduces the occurrence of human error and makes the system even more practical.”

Dr. Arlan Prabowo, M.sc., SpPk and Ema Rahmi, A.md.A.K

Laboratorium Kesehatan Provinsi Kalimanta Selatan, Indonesia Laboratorium Kesehatan Provinsi Kalimanta Selatan, Indonesia
