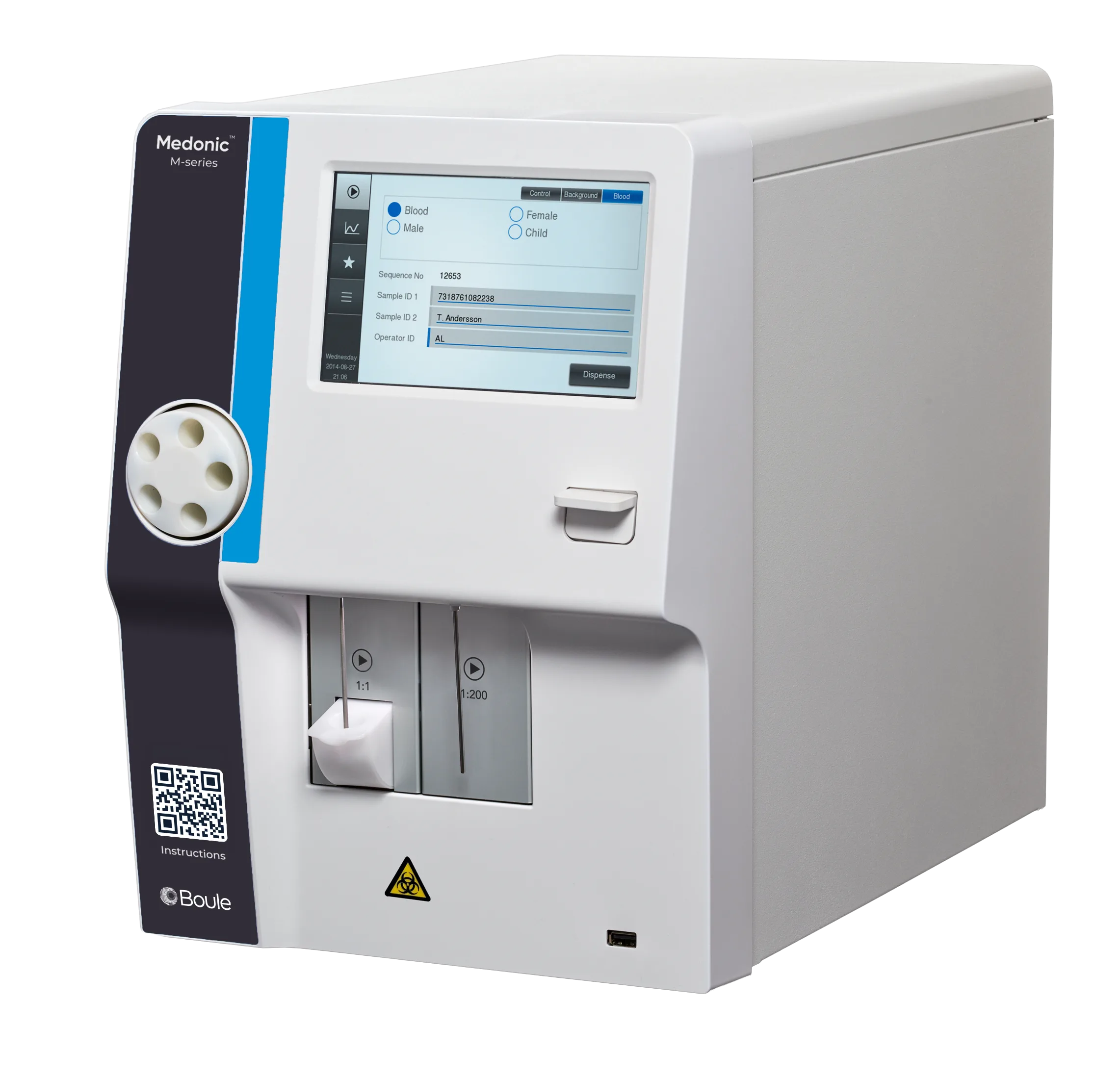

Medonic M32M

Medonic M32M 3-part hematology system also supports donor screening and blood banking, with functionalities for analysis of capillary blood and PLT concentrates.

  • Built-in mixer

    For samples awaiting analysis

  • Rapid results

    Reporting a CBC, including a 3-part WBC differential count, from a fingerstick sample in a minute

  • Robust design

    Helps ensure instrument uptime
Request a quote
Specifications
Consumables
Documentation
Training

Specifications

Disclaimer: Medonic M32 is not for sale in the USA

Parameters 3-part

16 Clinical Parameters:
WBC, RBC, HGB, MCV, PLT, MPV, HCT, MCH, MCHC, RDWr, LYM#, LYM%, MID#, MID%, GRA#, GRA%

6 Research Parameters:
PCT, PDWa, P-LCR, RDWa, PDWr, P-LCC

Performance 3-part

Throughput:
Up to 60 samples/hour
50 seconds time to results, OT inlet

Sample Volume:
Open tube (OT): 110 µL
Capillary (MPA): 20 µL
Prediluted: 20 µL
Cap piercer (CT): 250 µL
Autoloader: 300 µL

Sample Aspiration:
Open tube
Closed tube
Micro-pipette adapter
Autosampler (20 × 20 samples)

Linearity
PLT: 10–1800 ×109/L
RBC: 0.30–7.00 ×1012/L
WBC: 0.20–130.0 ×109/L
HGB: 2.0–24.0 g/dL

QC Statistics:
≤ Mean
SD
CV%
Levey-Jennings
X-bar

Connectivity 3-part

Data Storage Capacity:
Up to 50,000 samples

Interface Ports:
1 USB device/4 USB host, 1 LAN.
port that supports LIS/HIS
Communication through HL7 protocol

Export Options:
Postscript-compatible printers supporting PCL 3/5e
Software-supported thermal printers
External USB disk
Laboratory information system (LIS)

Physical 3-part

Display:
7” TFT touchscreen

Weight:
18 kg (Basic/M32B, Standard/M32M, Cap/M32C)
22 kg (Sampler/M32S)

Dimensions:
295 × 475 × 395 mm (Basic/M32B, Standard/M32M, Cap/M32C)
340 × 475 × 395 mm (Sampler/M32S)

Controls:
Tri-level controls (L, M, H)

Ensuring Reliability and Accuracy in Hematology

Boule has, through the company’s presence throughout the value chain for products that enable reliability, accurate analysis results, an exceptional hematology offering. From development and production to installation and use at the end customers, Boule ensures the quality in line with the company’s quality concept.

Internal quality assurance processes are in place the entire way from contracts with subcontractors, throughout production to the completion of the end products. By offering product service and product use training courses, Boule’s knowledge and quality concept cover the entire product life.

The concept is called The Total Quality Concept and the ultimate goal is to offer high-quality instruments and consumables that provide patients a close and accessible, more efficient and safer care.

Medonic M32 consumables

* Location of manufacturing. For availability in your country, please contact your local Boule representative.

Article name
Article description
Article number
Medonic M-series Diluent, RFID
20 L
1504460 (EU*), 501-463 (US*)
Medonic M-series Lyse, RFID
5 L
1504461 (EU*), 501-464 (US*)
Medonic M-serie DualPack, RFID
5 L + 1 L
1504465
Medonic M-series Diluent
20 L
1504122 (EU*), 501-211 (US*)
Medonic M-series Lyse
5 L
1504123 (EU*), 501-212 (US*)
Medonic M-series Dual pack
5 L + 1 L
1504128
Boule Cleaning Kit
3 × 450 mL
1504111 (EU*), 501-036 (US*)
Boule Enzymatic Cleaner
100 mL
1504112
Boule Hypochlorite 2.0% Cleaner
500 mL
1504113

Boule Controls & Calibrators

Article name
Article description
Article no.
Boule Con-Diff Normal
1 × 4.5 mL
1504019
Boule Con-Diff Low
1 × 4.5 mL
1504020
Boule Con-Diff High
1 × 4.5 mL
1504021
Boule Con-Diff Tri-Level
2 × 3 × 4.5 mL
1504022 (EU*), 502-012 (US*)
Boule Con-Diff Normal
6 × 4.5 mL
1504043
Boule Con-Diff Low
6 × 4.5 mL
1504176
Boule Con-Diff High
6 × 4.5 mL
1504216
Boule Cal
1 × 3 mL
1504025 (EU*), 502-018 (US*)
Boule Cal
2 × 3 mL
1504045

Medonic M32 Product family range

Model
M32B
M32M
M32C
M32S
Article no
1420021
1420022
1420024
1420026
Built-in mixer
Micro-pipette adapter (MPA)
Maintenance-free shear valve
Pre-dilution mode
Cap-piercing device
Autoloader
